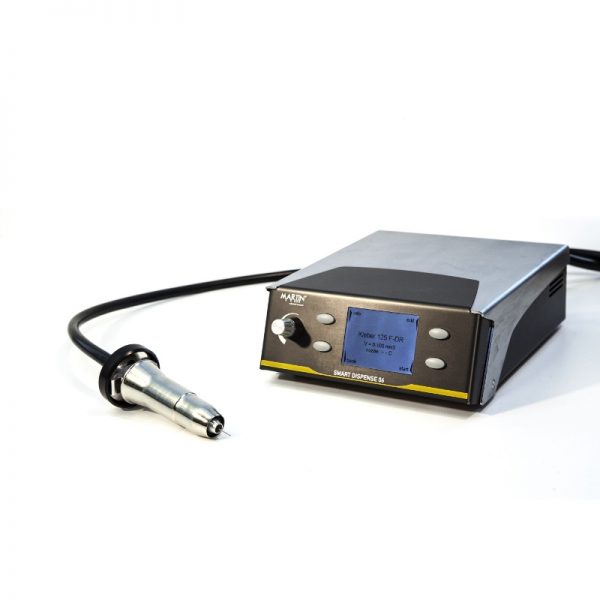

Martin | Smart Dispense 06

Product description

Complete set consisting of the control unit and dispensing pen for volumetric application of pastes, adhesives and much more. This dispenser was designed for manual dispensing of high reproducibility.

The SMART DISPENSE 06 is a professional dispenser for manual applications that require high accuracy and repeatability. These dispensers also allow heating the dispensing nozzle. The all-electronic dispensers use dispensing recipes for storing the application parameter. Thus, the dispensing pressure and the nozzle temperature are automatically set as specified after selection of the recipe. A temperature sensor inside the dispensing pen measures the cartridge temperature. The SMART DISPENSE 06 control unit compensates viscositychange dependent on the material and determines the optimum parameter to guarantee a stable dispensing result. The dispensing recipes can easily be adjusted to new materials and applications, which provides maximum process control to the user. Temperature insulated dispensing pens are available for common cartridge sizes in order to avoid material heating when dispensing by the user. In use of high viscous material viscosity-setting is possible by means of an optional integrated nozzle heater inside the dispensing pen. 1K material from liquid to pasty can also be processed reliably. In use of low viscous material formation of drops on the dispensing needle is avoided by means of manual retain vacuum. Dispensing programs are created, optimized and managed well-arranged on the PC using the software CLEVER DISPENSE Pro.


  • Cartridges to use: 3 ccm, 5 ccm, 10 ccm, 30 ccm
  • Viscosity Range: 10-100.000 mPas
  • Nozzle Heater: 50°C Prepared in Control Unit
  • Dot Dispense: Time Range: 0,01 s – 2 s
  • Line Dispense: Time Range: 0,10 s – 30 s
  • Communication: USB 2 (Typ B)
  • Weight / Size: 192 x 152 x 60 mm³ / 1,5 kg
