Product description

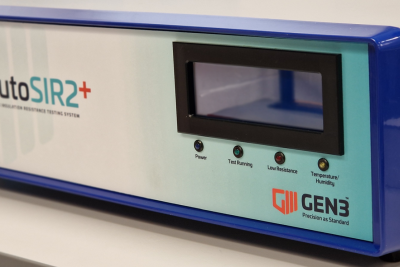

The new AutoSIR2+™ system represents a dramatic improvement over existing SIR test alternatives, and its shielded precision electronics allows state-of-the-art accuracy resistance measurements to be made up to 1014 Ω.

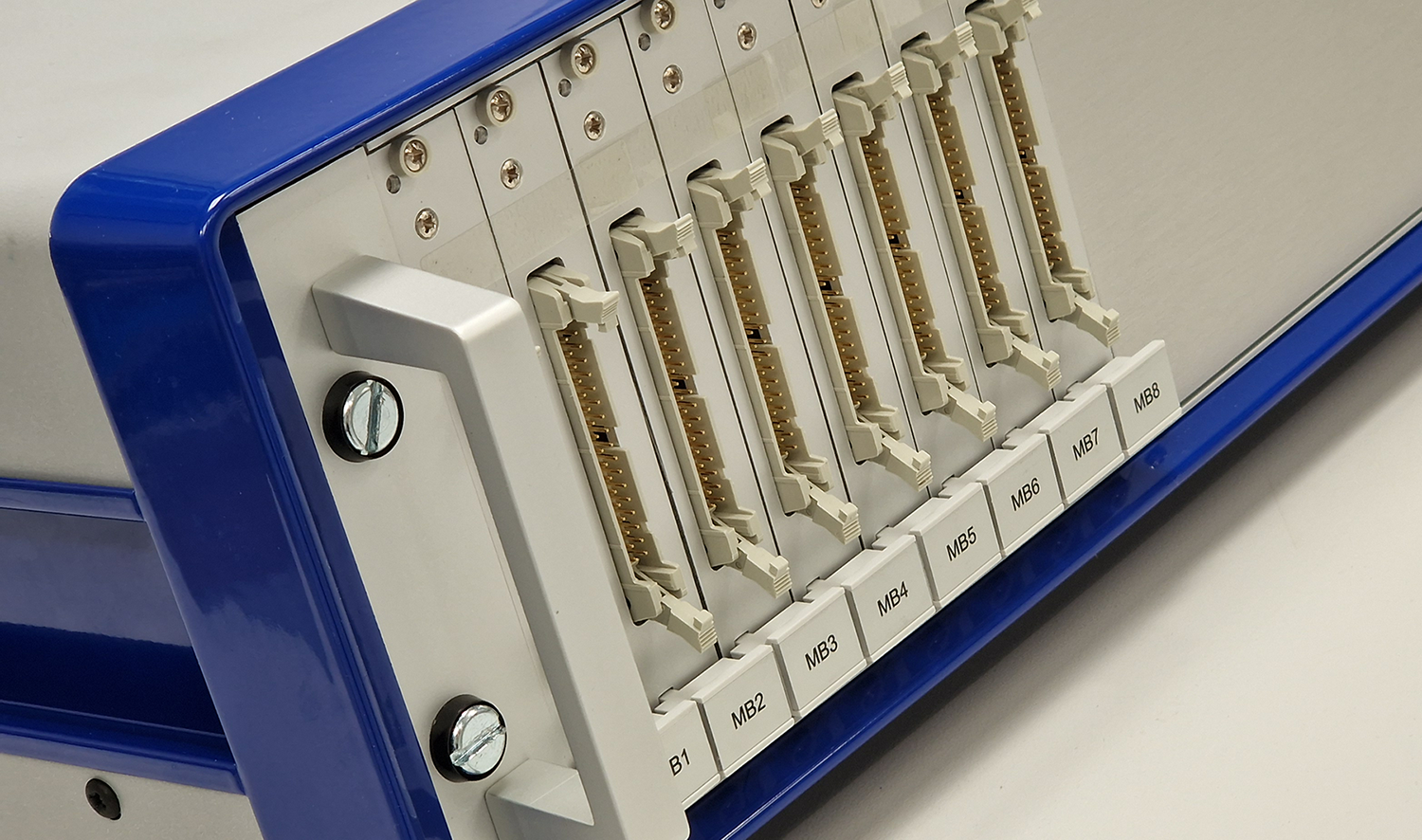

One AutoSIR2+ chassis can hold between 1 to 16 measurement cards and can monitor up to 256 x 2-point test patterns or 78 x 5-point test patterns, or 32 x 9-point test patterns at selectable intervals from minutes to days. Each channel is current limited (1 M Ω), which encourages growth of dendrites for failure analysis. The frequent monitoring capability provides a full picture of the electrochemical reactions taking place on a circuit assembly, and provides early trend analysis enabling tests to be curtailed, thus saving considerable test time and money.
Key Features
- Measurements from all 256 Channels can be taken in <30 seconds
- Applied Voltage: +1V to 100V
- Measurement Range: 106 Ω to 1014 Ω
- Measurement Method: Continuous on all selected channels
- Measurement Test Intervals: Fully selectable from minimum of 1 minute
- Capable of testing to all existing test specifications – IPC – IEC – JNC and other user specifications
- Future proofed design
- AutoSIR2+ is available with 64, 128 or 256 channel configurations
- On connection the system runs a self test

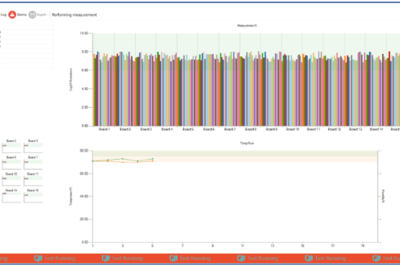

- Adaptable and flexible software operating with Windows 7, 8 &10
