Product description
ASI P/N: 50850 | Acumen AI - Artificial Intelligence System

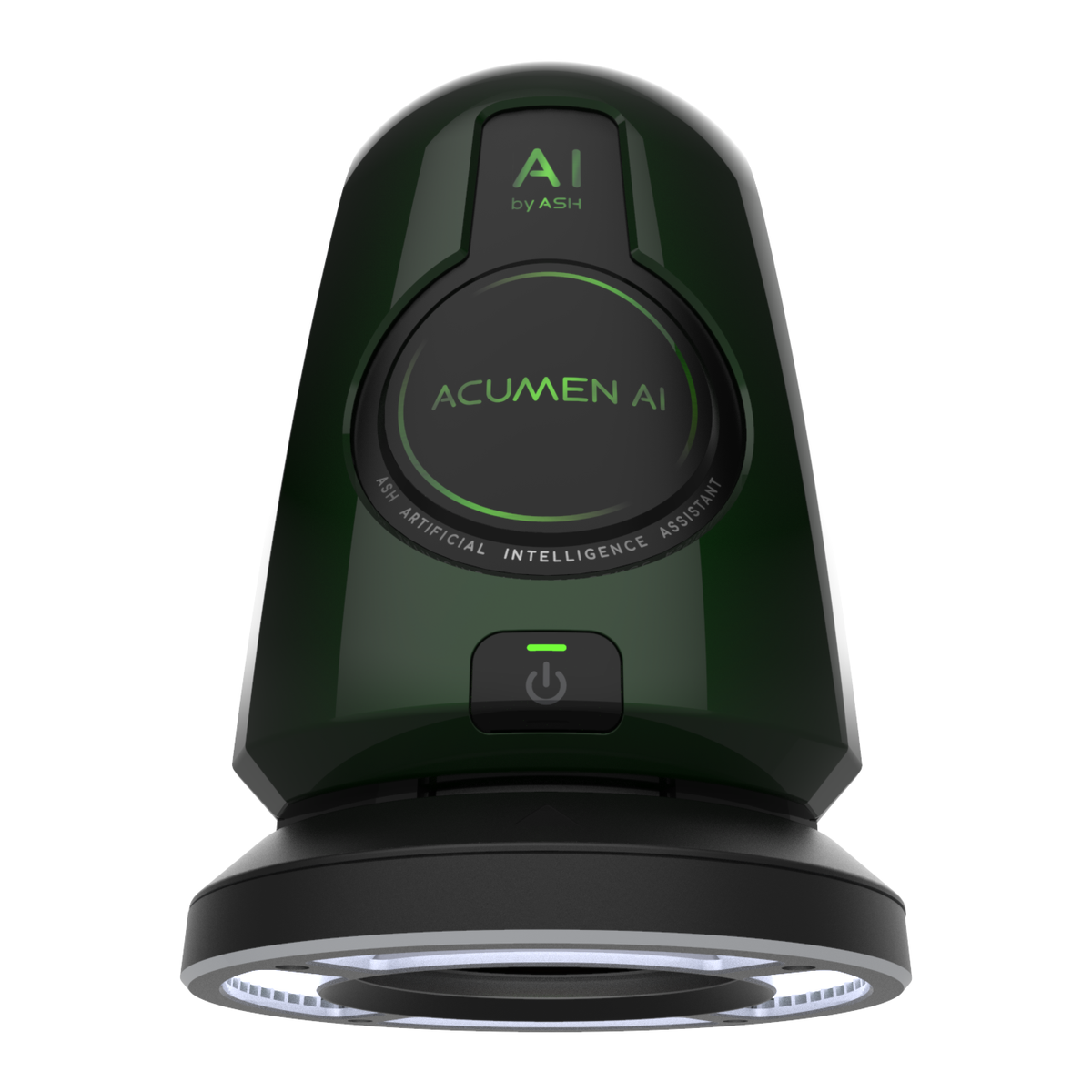

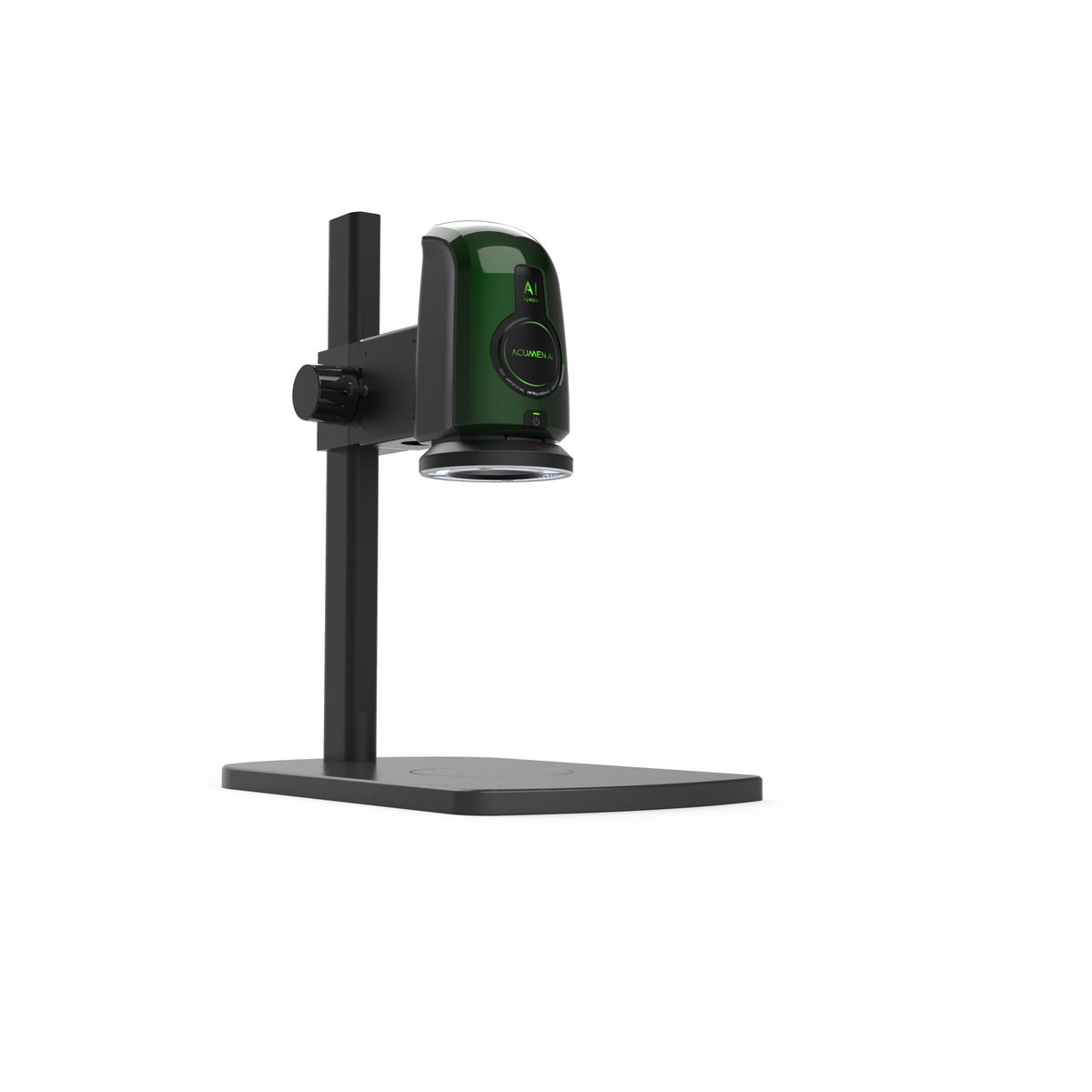

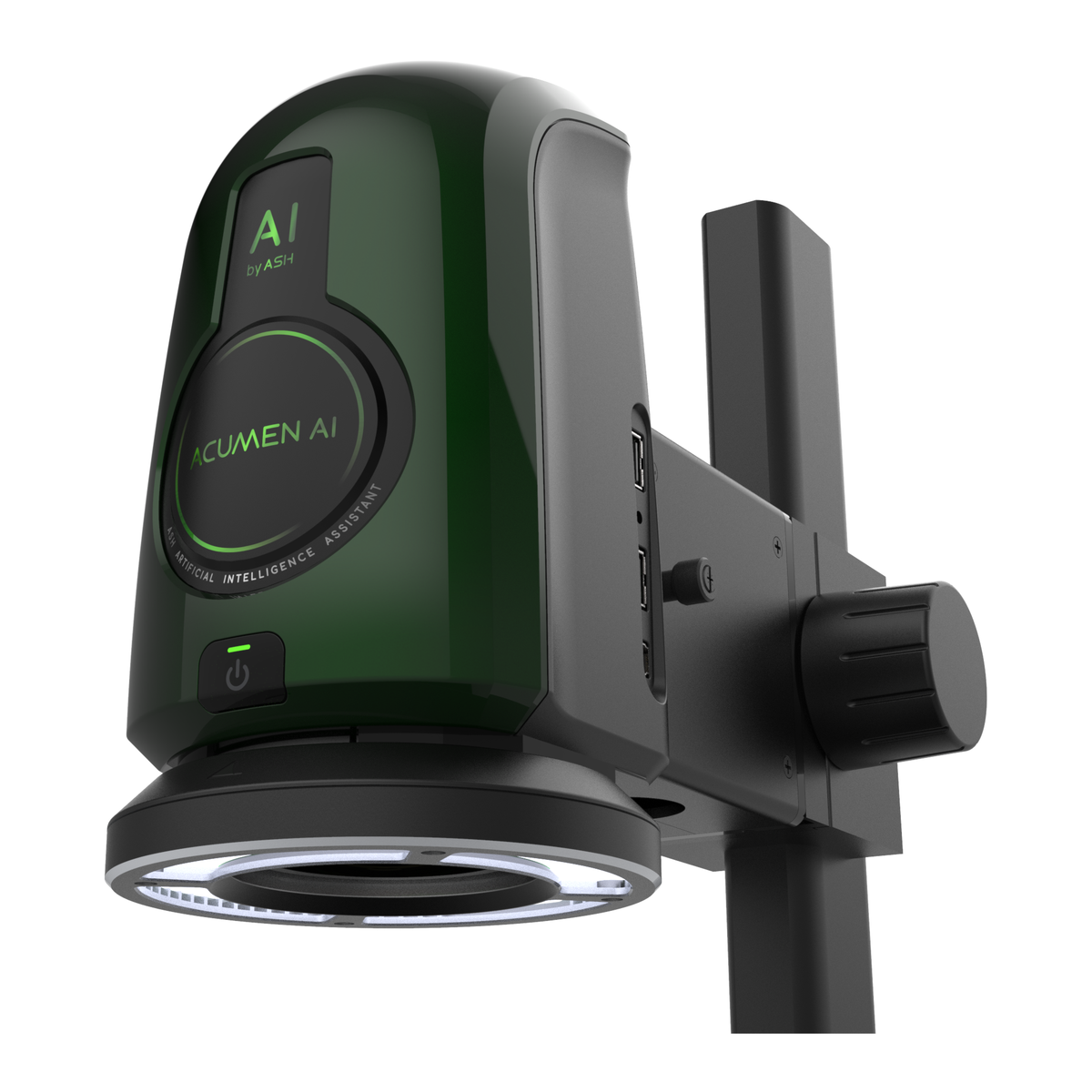

Acumen AI – AI-Based Visual Inspection and Measurement System
ASH Acumen AI is an automated visual inspection and measurement system with deep-learning video analysis. The simple interface enables non-experts to capture and label images, optimize training parameters and train inspection models. The models identify, classify, measure and count a wide range of defects, and decision-making can be fully automated or used to assist the operator.
Benefits
- Modular, scalable platform: modules for algorithm training, inspection and integration.
- Training metrics: Precision, Recall and Training Loss to improve models over time.
- Per-model settings: magnification, lighting, thresholds and report format.
- Integration: connection to industrial devices, robots and cobots for continuous operation.
Example applications
PCB inspection (missing components, foreign objects, solder bridges), component position and orientation, syringe and vial cap inspection, colony counting, fiber counting, blister pack inspection and area measurement.
For a demo, consultation or a quote, contact the ASI team.
Specifications
Technical Specifications
| System |
Automated AI visual inspection and measurement with deep-learning video analysis |
| AI functions |
Object detection, classification, anomaly detection, instance segmentation, semantic segmentation |
| Camera resolution |
1920 × 1080 pixels |
| Frame rate |
50 / 60 fps |
| Magnification (supplied +5 lens) |
2.5 – 68x (Optical)
69d – 136.5d (Digital) |
| Camera unit input / output |
HDMI output, USB 2.0 (x4), Mini USB, General Purpose IO (x3), DC power jack 24V |
| Camera unit internal storage |
16GB |
| Image capture |
Internal storage, removable USB storage, USB On-The-Go (PC connectivity) |
| Camera unit power |
24W |
| Camera unit dimensions |
216 × 125 × 136 mm |
| Camera unit weight |
1.5 kg |
| Camera unit operating temperature |
+5°C to +40°C |
| Acumen Controller Unit (ACU) |
Linux-based industrial PC for Acumen AI training and testing applications |
| Controller I/O |
USB 3.2 Gen1 (x6), DB-9 (x4) RS-232/422/485, LAN (x3), PCIe expansion slots (x3), 12–24V DC input |
| Controller memory |
Up to 128GB, 2666MHz |
| Controller graphics |
8GB GDDR6, 256-bit, up to 416 GB/s; 57.0 TFLOPS tensor performance |
| Controller weight |
8.4 kg |
| Controller certification |
CE / FCC Class A |
| Options |
Software modules (Automatic Measurement, Industrial Communications, Project Sequencing), API module (TCP/IP), UR3 cobot mounting for multi-FOV movement |
Source: ASH Acumen AI brochure (2023).
