Ultra-High-Definition Inspex 4K | ASH Digital Microscope System

Product description

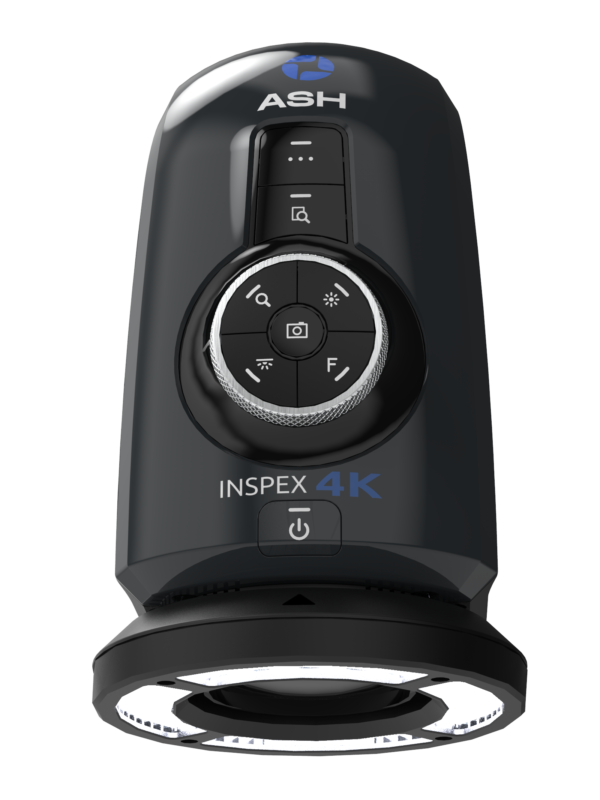

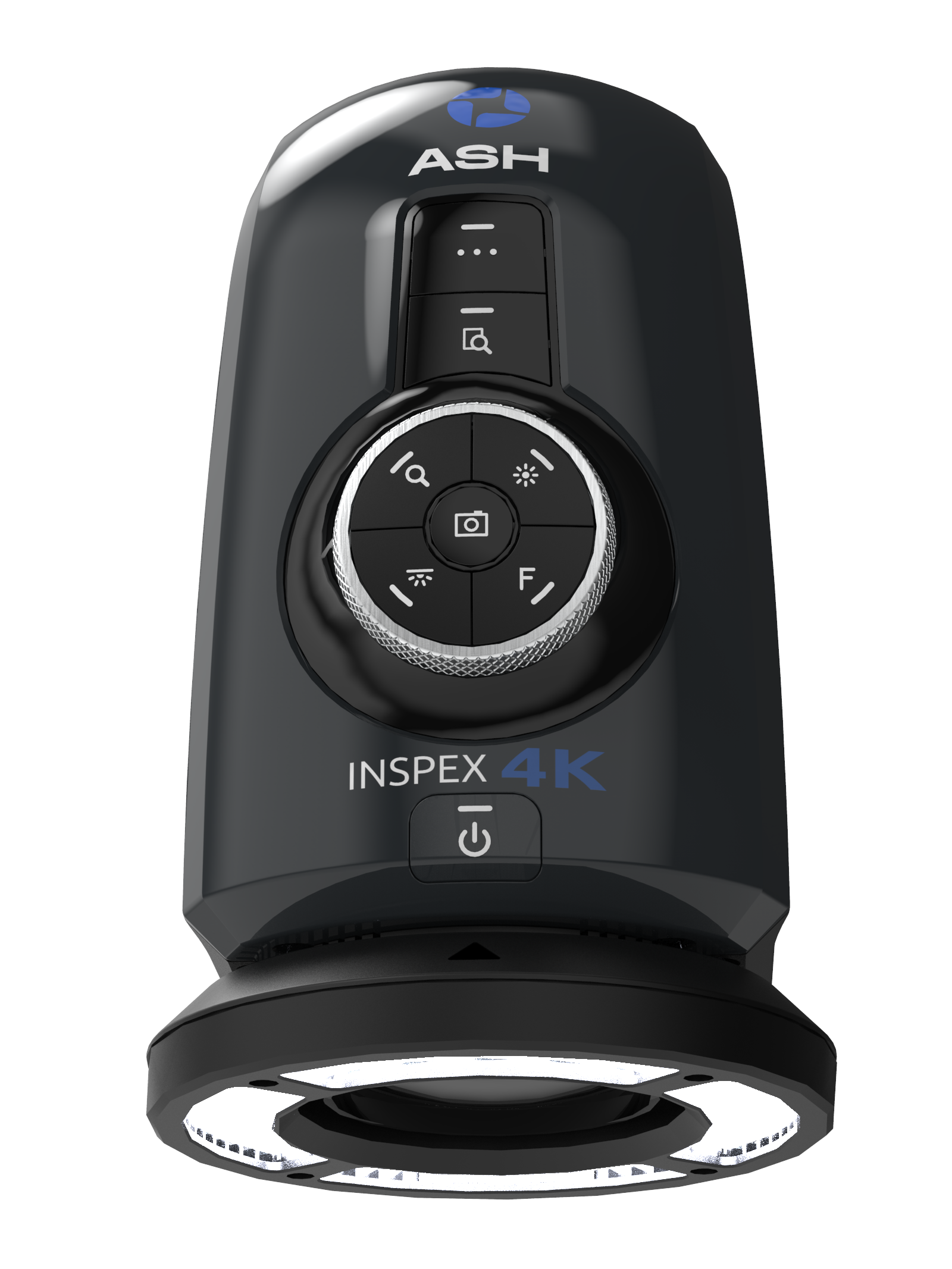

Ultra-High-Definition – Inspex 4K

The Inspex 4K is the digital microscope with a 4K camera that delivers four times the resolution of full HD inspection systems. With this system you can experience crystal clear ultra-high definition video imaging, allowing you to see more detail than ever before.

The simple, intuitive interface of the system empowers the end user to inspect parts with ease, simplicity and comfort.

The Inspex 4K offers features such as high-magnification, auto-focus, manual focus, auto-exposure and white balance. You can speed up your inspection process by identifying defective parts faster, easier and in super high resolution.

Instantly transform your manufacturing process

Ultra HD Resolution 3840 x 2160 pixels
10x-71x Optical Zoom
Higher colour depth and superb image quality
Autofocus
Image & video capture
Improve inspection quality
Ergonomic digital solution
Faster image response for rework & observing moving parts
Easily adjustable working height

Additional information

Manufacturer	ASH Technologies

Specifications

Zoom Range	10x-142x
Camera Resolution	3840 x 2160 pixels
Monitor Connections	HDMI/DVI
Monitor Requirement	4K Monitor
Power	24W/110W
Dimensions	216(H) x 165(W) x 170(D) mm
Weight	1.75kg
Operating Temperature	Storage 10°C to +60°C
Operating	+5°C to +40°C
Video Format	4K (3840 x 2160) @ 25/30fps
Internal Storage	N/A
Image Save Format	JPEG, BMP, PNG
Input / Output	HDMI Out
USB	2.0 – (x1 Ports)
Mini USB	– (x1)
General Purpose	IO – (x3 Ports)
DC Power Jack	24V
Image Capture	Capture Card to PC
