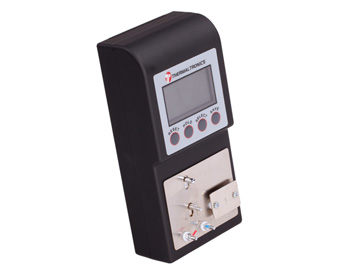

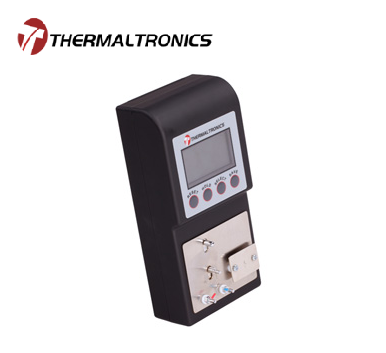

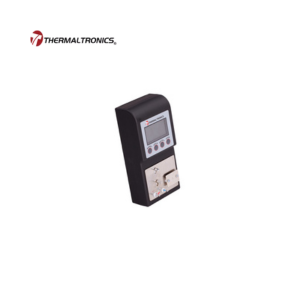

Thermaltronics TMT ST10 - 3 in 1 Soldering Tip Tester

Thermaltronics TMT ST10 – 3 in 1 Soldering Tip Tester

Product description

Professional Soldering Tip Calibration & Testing Tool

The TMT‑ST10 is a compact, multi-functional tester designed to ensure soldering iron tip performance meets the highest standards. It integrates three essential testing capabilities into one portable unit: tip temperature, tip‑to‑ground resistance, and tip‑to‑ground AC voltage leakage. Ideal for production lines, QA laboratories, and service environments.

Key Features

Three functions in one device:
- Tip Temperature (°C/°F switchable)
- Tip‑to‑Ground Resistance (Ω)
- Tip‑to‑Ground AC Voltage Leakage (mV)
Real-time measurement with clear LCD display
Internal memory for up to 32,640 test events
Mini USB port for data export and analysis
Includes: 10× K‑type thermocouple sensors, Mini USB cable, and ground wire
RoHS compliant and CE certified

Additional information

Manufacturer	Thermaltronics

Specifications

Specification	Details
Input Voltage	DC 9V (Battery)
Temperature Range	0°C – 600°C / 32°F – 1200°F
Temperature Resolution	1°C / 1°F
Temperature Accuracy	±3°C / ±6°F
Resistance Range	0 – 100 Ω
Resistance Resolution	0.1 Ω
Resistance Accuracy	±(5% of reading + 1 digit)
Voltage Range	0 – 100 mV (AC)
Voltage Resolution	0.1 mV
Voltage Accuracy	±(5% of reading + 1 digit)
Thermal Sensor	K-type Thermocouple
Data Storage	32,640 Events
Display	LCD, 48 × 26.5 mm
Dimensions (W×H×D)	85 × 175 × 48 mm
Weight	0.35 kg
