Product description
ASI P/N: 62715 | Hawkeye2000 Automatic X-Ray Chip Counter

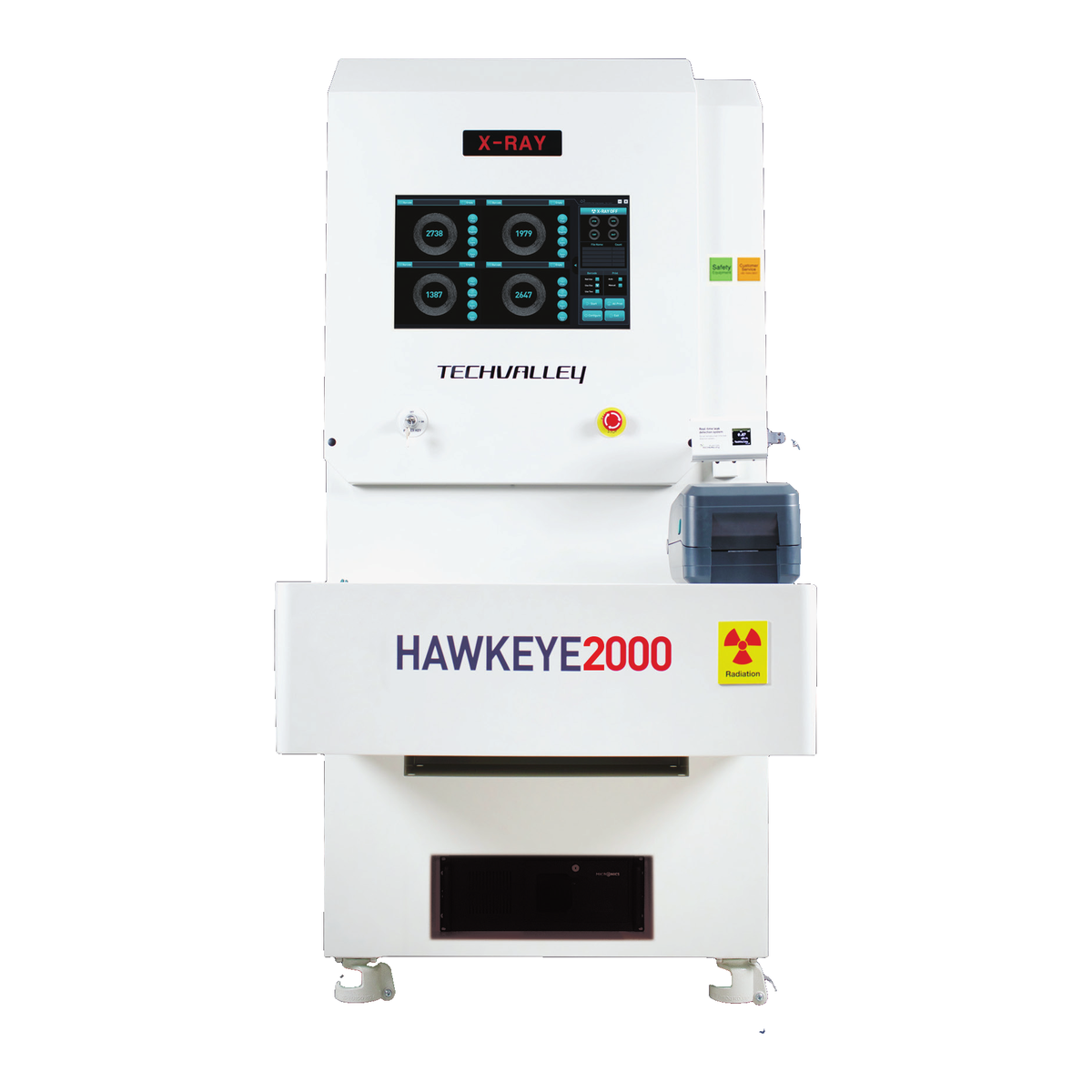

HAWKEYE 2000 – Automated X-ray Chip Counter
The Techvalley HAWKEYE 2000 counts SMD components in reels, trays and tubes automatically using X-ray imaging, without opening the reel or damaging the components. Counting accuracy is above 99.9%, and results can be transferred directly to MES / ERP systems for inventory management.
Key benefits
- Fast counting: less than 8 s for 1 reel, and up to 4 reels (7″, 180 mm) simultaneously in less than 10 s.
- Wide range: reels from 180 mm (7″) to 380 mm (15″); minimum chip size 0201 mm (008004″).
- Easy operation: intuitive graphical UI for short training and fast use.
- One-click error correction: the system learns from corrections using deep-learning AI.
- Poka-yoke: black & white reel lists, manual quantity adjustment and automatic barcode scanner (optional).
- Label printing of the counting result.
- Radiation safety: real-time external radiation leakage detector (Techvalley patent); radiation of 1 µSv/h or less.
- Smart Factory (Industry 4.0): MES / ERP integration for inventory management.
For a demo, consultation or quotation, contact the ASI team.
