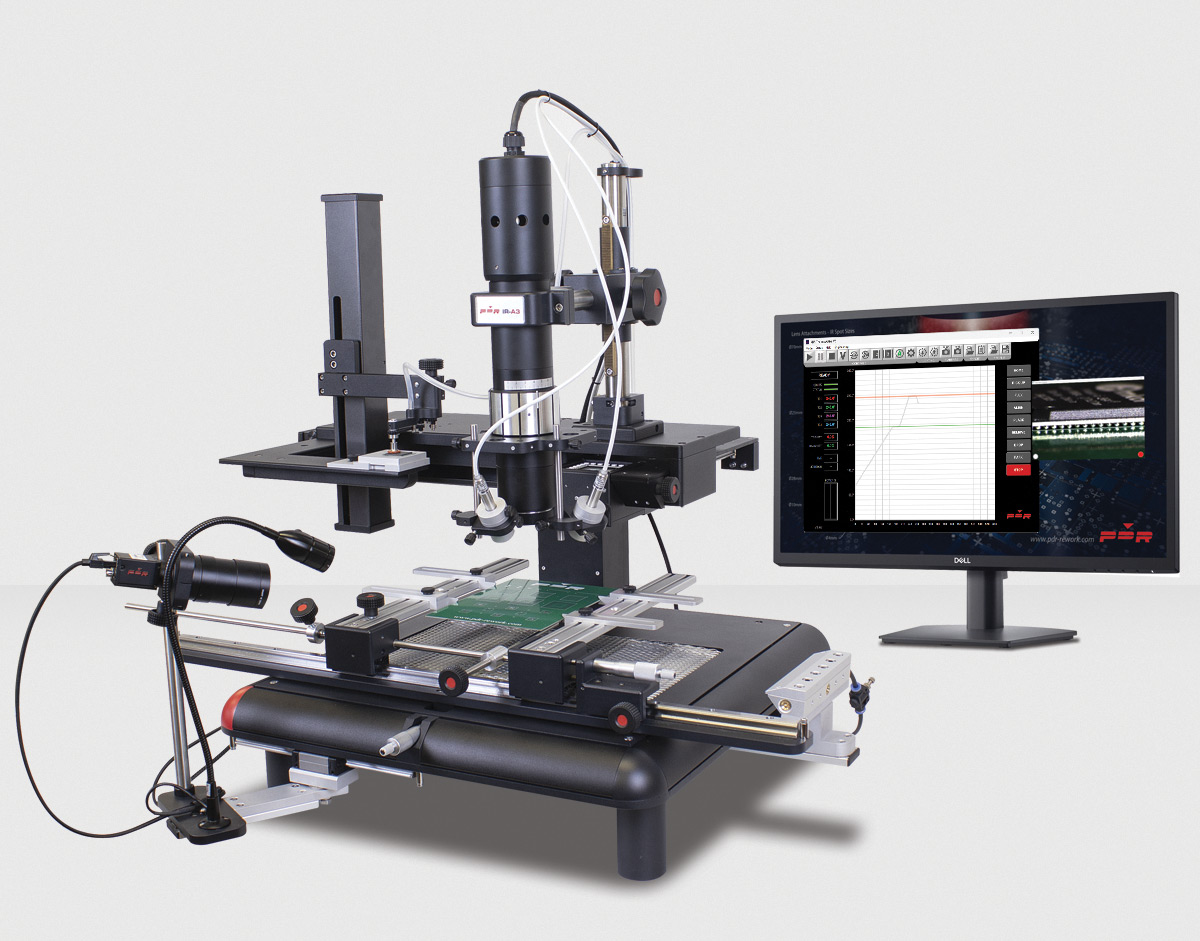

Advanced Infrared Rework Station – Precise, Safe, and Contact-Free
The IR-Q3 system from PDR is engineered for professional rework of SMD, BGA, CSP, QFN, LED, and RoHS components. Utilizing Focused Infrared heating technology, the system provides a smart, intuitive experience with a proven 98% yield in BGA repairs.
Key Features:
- Focused IR Top Heater: 150W precise, contactless heating with adjustable spot sizes.
- 3-Zone Quartz PCB Preheater: 3250W Dark IR system for fast and even heating.

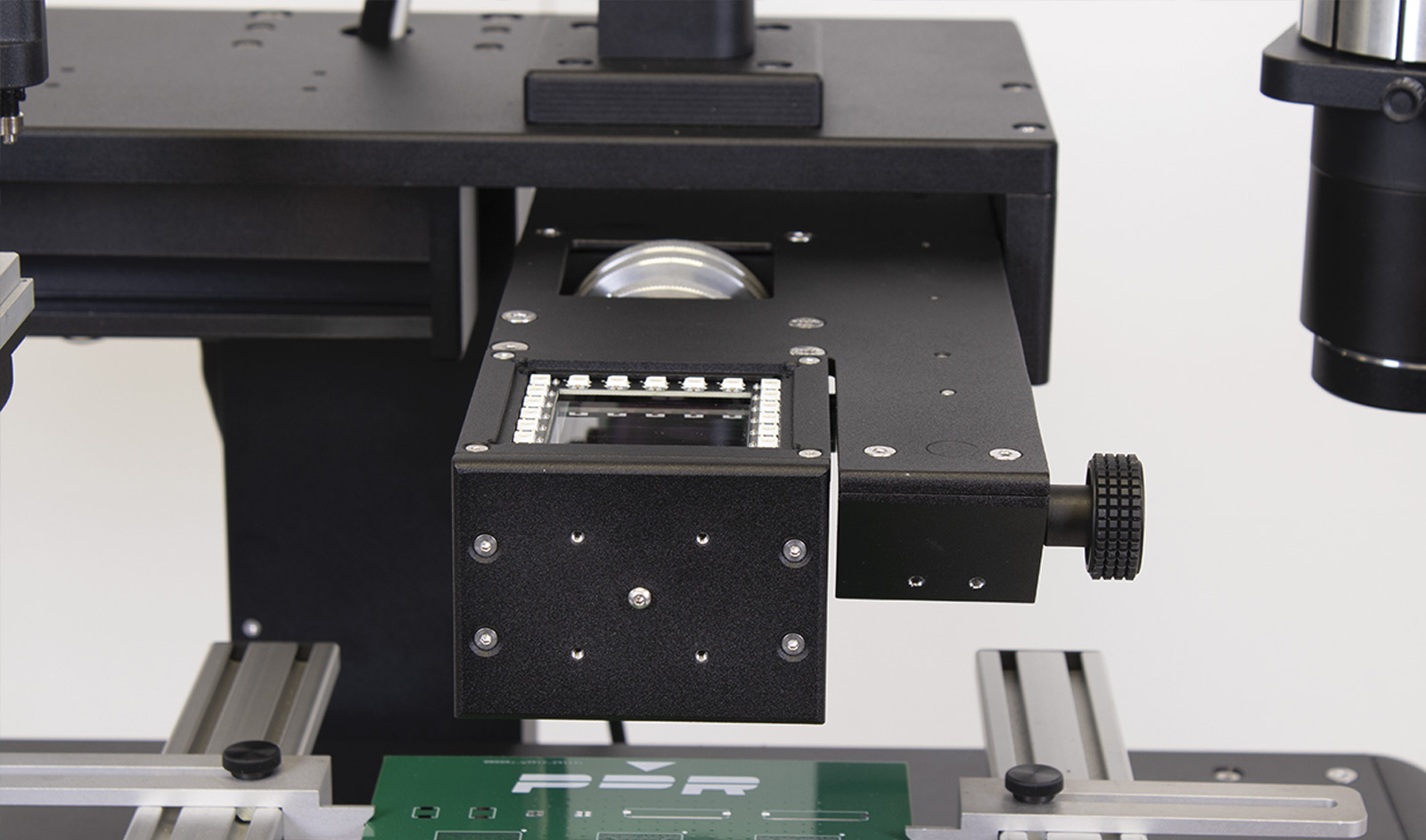

- Split Beam Optical Alignment: Provides simultaneous viewing of PCB and component for accuracy up to 5µm.
- Closed-Loop Thermal Control: Non-contact IR sensors monitor both the component and PCB in real-time.
- ThermoActive Software Suite: Advanced thermal profiling and automatic process control.
- Reflow Process Observation: High-resolution camera for real-time visual monitoring.
- Pick & Place Mechanism: Automatic component removal and placement with “soft landing” capability.
- Modular Design: Fully upgradeable platform to meet changing production needs.
- 2-Year Warranty: Comprehensive manufacturer support.
