Product description

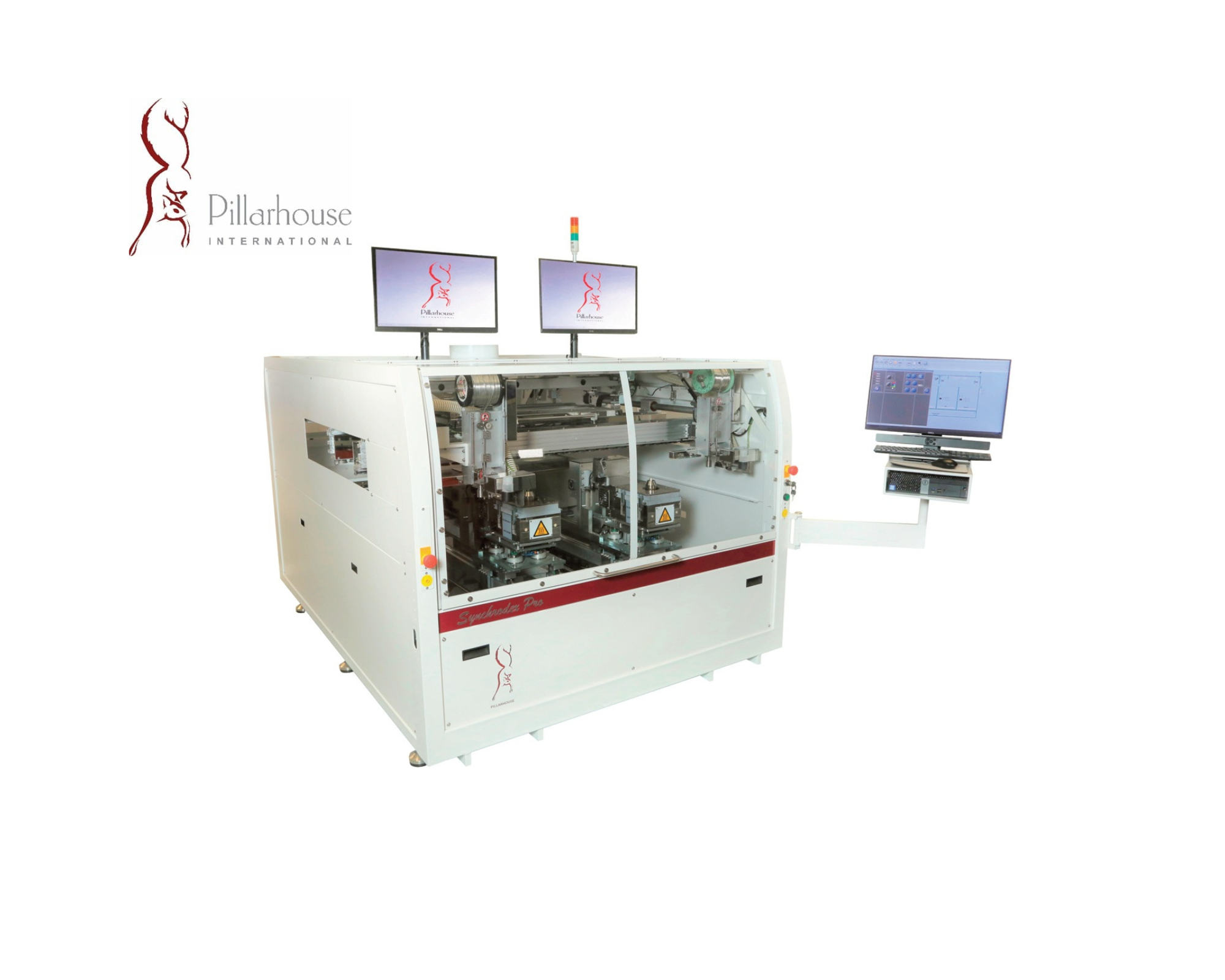

The Orissa Synchrodex Pro is a modular, high-precision inline selective soldering system optimized for high-mix, high-performance production environments.

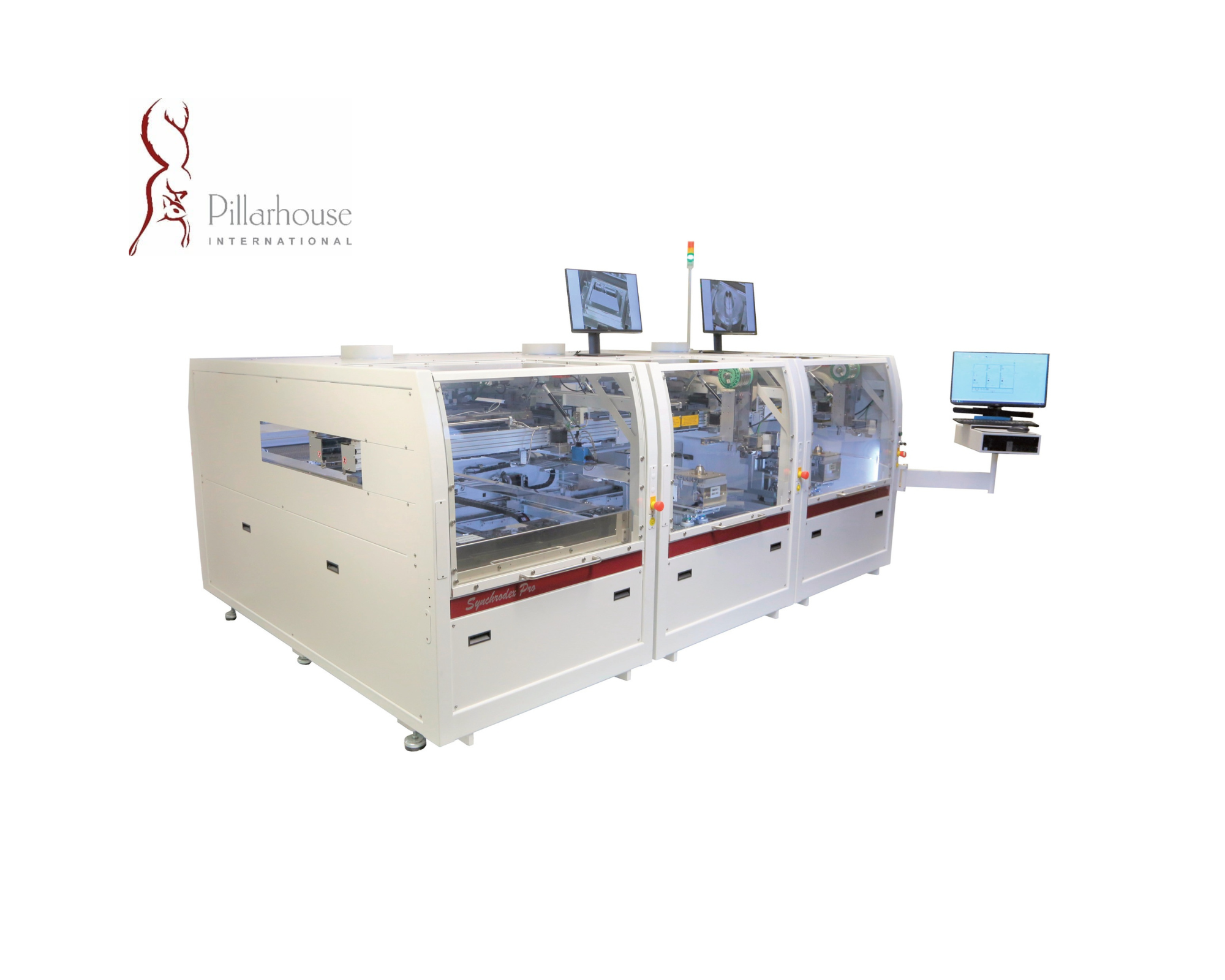

It handles PCBs up to 1200 × 610 mm and can be configured with single or dual solder baths, allowing simultaneous processing of multiple boards or nozzle configurations, enhancing flexibility and throughput.

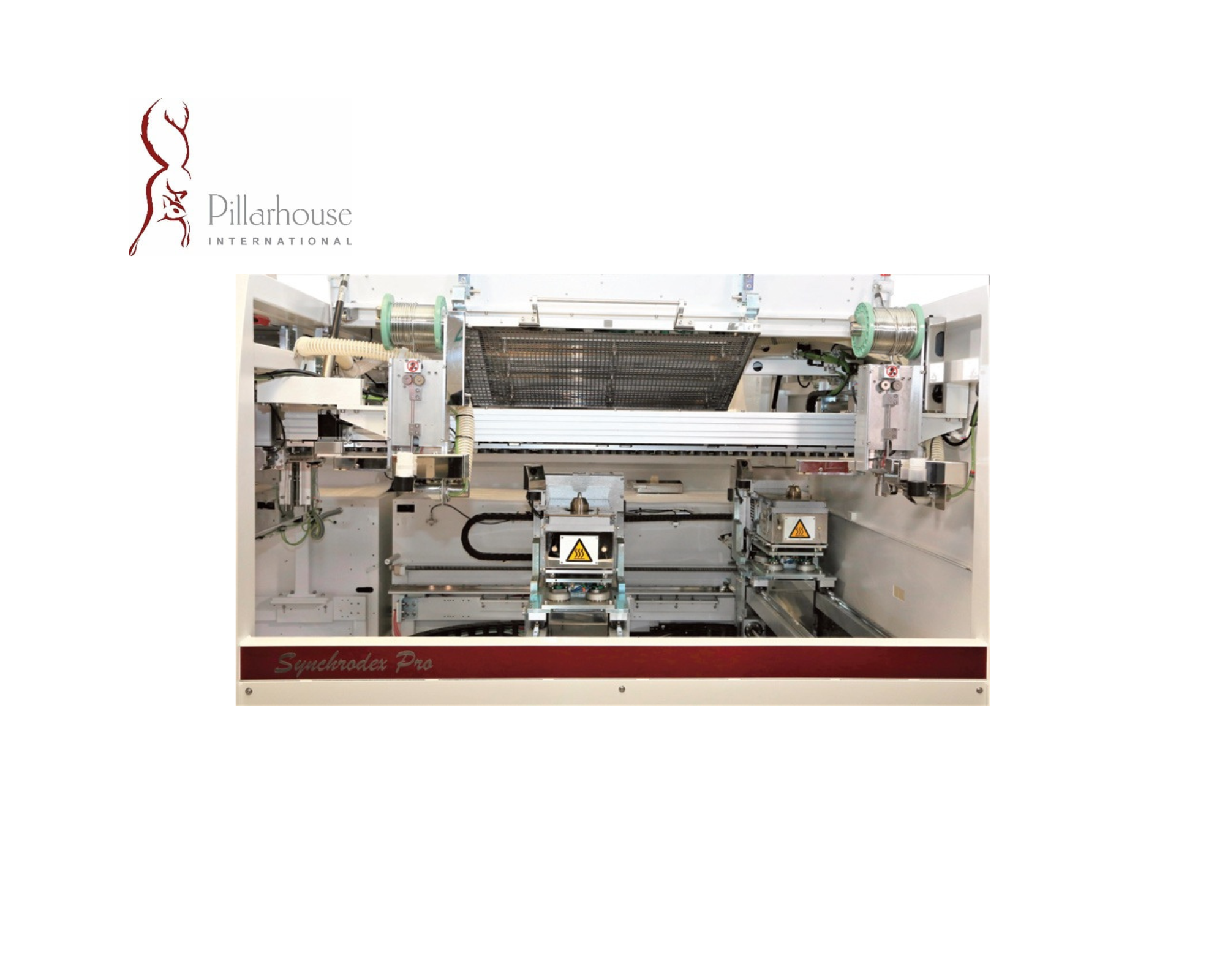

The standard solder module features an onboard Drop-Jet fluxer, with optional infrared or convection pre-heating (top and bottom) controlled by closed-loop pyrometer. Modules can be dedicated specifically for fluxing or pre-heating to further streamline production.

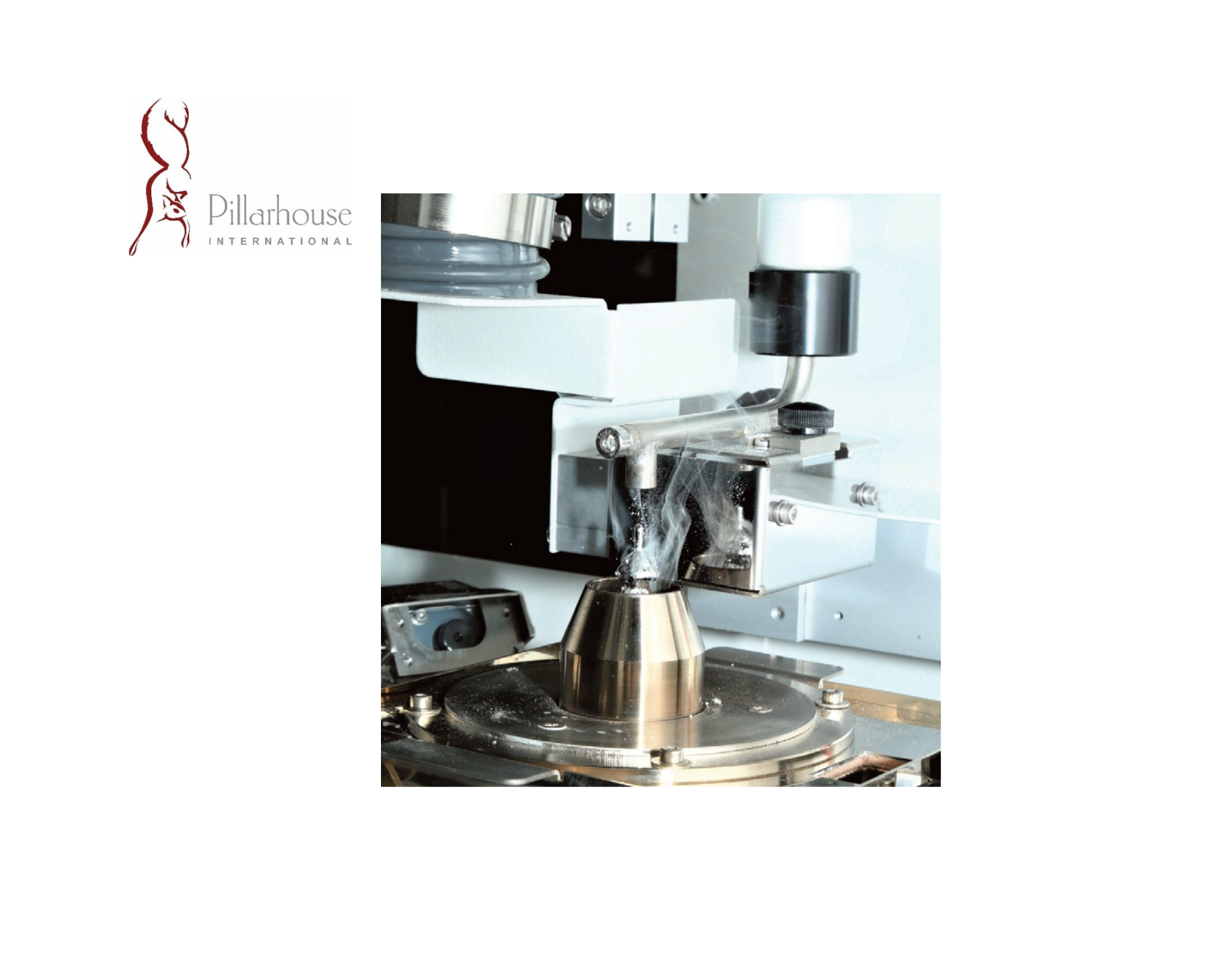

Compatible with all Pillarhouse soldering technologies, including patented 1.5 mm Micro Nozzle, Jet Wave, AP-1, and custom multi-dip. Rapid, non-contact solder pot exchange is facilitated by an optional heated pot trolley.

The Synchrodex Pro operates with PillarCOMM.NET software, a Windows®-based “Point & Click” interface supporting offline programming using Gerber data, ensuring quick setup, precise control, and seamless Industry 4.0 integration.

Additional information

Manufacturer	pillarhouse

Specifications

Parameter	Value
Height	1391mm / 55” – excluding light stack and monitor
Width	1060mm / 42“ or 1600mm / 63” (depending on frame size)
Depth	2250mm / 88”
Board Size	Min: 102 × 102 mm / 4” × 4”Max (standard): 420 × 610 mm / 16.5” × 24”Optional: 610 × 610 mm / 24” × 24” and 1200 × 610 mm / 45” × 24”
Edge Clearance	3 mm above/below
Height Clearance	45 mm above / 40 mm below (nominal)
Extraction Fan	Diameter: 236 mm
Extraction Rate	940 m³/hr / 553 CFM
Supported Solder Types	All commonly used types, including lead-free
Solder Pot Capacity	11 kg / 24 lb (standard), up to 20 kg / 44 lb (large)
Nozzles / Applicators	Micro Nozzle: 1.5–2.5 mmAP Style: 2.5–16 mm dia.Extended AP: 2.5–16 mmJet-Tip: 6–25 mmJet-Wave: up to 40 mm widthWave: 75 mm / 150 mmCustom nozzles available upon request
Flux System	Drop-Jet, low-maintenanceLow solids (<8%), no-clean, pressurized & inertedOptional ultrasonic system
Axis Resolution (X/Y/Z)	0.15 mm
Repeatability	±0.05 mm
Nitrogen Supply Pressure	5 bar / 72 psi
Nitrogen Consumption	30–100 L/min (1.06–3.53 CFM) – dependent on nozzle configuration
Nitrogen Purity	≥ 99.995%
Air Supply Pressure	5 bar / 72 psi
Air Consumption	10 L/min / 0.35 CFM
Power Supply	Three-phase + Neutral + PE
Voltage	230 V (phase to neutral) / 400 V (phase to phase)
Frequency	50 / 60 Hz
Power Consumption	Configuration dependent
Transport System	Conveyor (IPC-SMEMA-9851 compliant)
Programming Software	PillarCOMM.NET – Windows®-based ‘Point & Click’ interface
