Application:

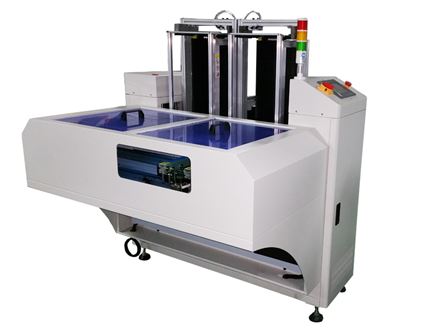

Used after AOI. The OK and NG PCB after being tested by AOI can be separated and sent to the PCB racks.
Technical Specifications:
Selectable pitch 10mm up to 40mm
Auto/Manual run modes
Diameter 3mm edge round belt
Component clearance: top 80mm bottom 20mm
Power: AC220V/110V, 50/60 HZ, 1 phase
Air Pressure: 5kgf/cm2
PCB Convey Direction: L-R ( Or R-L)
Front rail fixed ( or rear rail fixed)
Conveyor height:900+-20mm
Conveyor speed: 10m/s
| Manufacturer |
|---|
Magazine max pcb width available at 250mm(S), 330mm(M), 390mm(L), 460mm(X)
| Model No | Description | Magazine Size | Max PCB Size |
| SUL250D | 250mm Magazine NG Unloader | 355x320x563 mm | 350×250 mm |
| SUL330D | 330mm Magazine NG Unloader | 460x400x563 mm | 460×330 mm |
| SUL390D | 390mm Magazine NG Unloader | 535x460x570 mm | 535×390 mm |
| SUL460D | 460mm Magazine NG Unloader | 535x530x570 mm | 535×460 mm |
Order and Shipping Info:
| Model No | Machine Dimension(L×W×H) | Net Weight | Shipping Dimension(L×W×H) | Gross Weight |
| SUL250D | 1510×1460×1200mm | 320 kgs | 1690×1640×1420mm | 420 kgs |
| SUL330D | 1910×1630×1200mm | 350 kgs | 2090×1810×1420mm | 450 kgs |
| SUL390D | 2160×1760×1200mm | 380 kgs | 2340×1940×1420mm | 480 kgs |
| SUL460D | 2160×1900×1200mm | 410 kgs | 2340×2080×1420mm | 510 kgs |
