Neoden | IN8C REFLOW OVEN

Product description

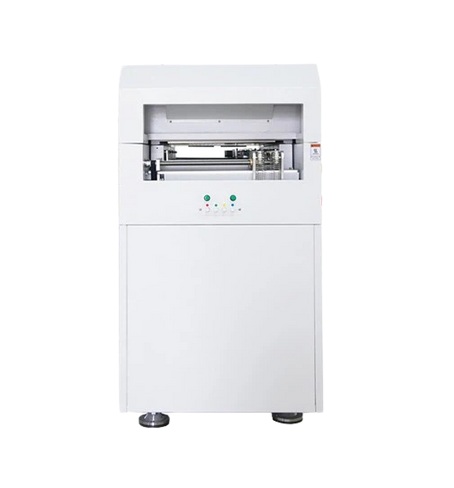

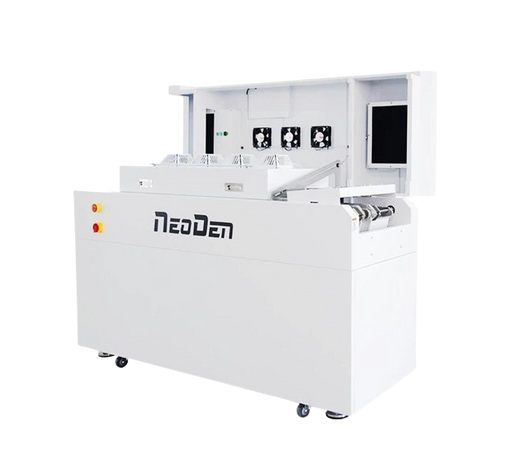

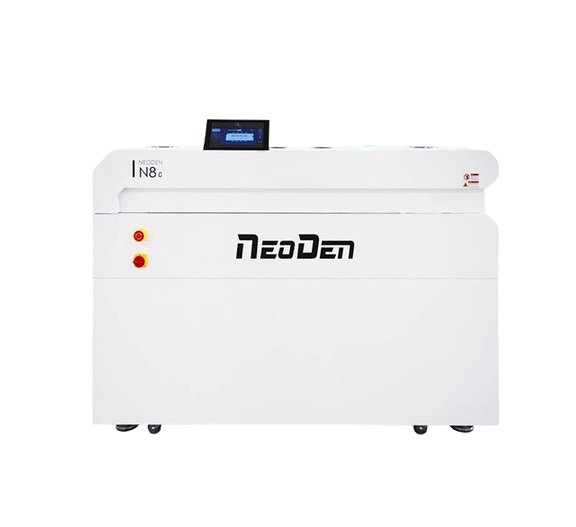

The NeoDen IN8C is an advanced, environmentally friendly reflow oven designed for precision and efficiency in medium-sized SMT production lines.

With its compact design and intelligent temperature control, it ensures consistent soldering quality while maintaining energy efficiency.

Key Features

8 Heating Zones: 4 top and 4 bottom zones provide uniform temperature distribution for reliable soldering.
Intelligent Temperature Control: High-sensitivity sensors maintain stable temperatures with minimal deviation.
Energy Efficient: Low power consumption with a working power of approximately 1.5 kW.
Built-in Smoke Filtration: Integrated system effectively filters harmful gases, promoting a safer working environment.
Compact Design: Space-saving footprint suitable for various production settings.
User-Friendly Interface: Simplified controls for easy operation and maintenance.

Applications

SMT Production Lines: Ensures consistent soldering quality for various PCB assemblies.
Prototyping: Suitable for small-batch production and testing.
Educational Institutions: Perfect for training and research purposes.

Manufacturer	Neoden

Parameter	Specification
Heating Zones	4 Top / 4 Bottom
Heating Method	Nickel chromium alloy wire and aluminum alloy heating
Cooling Zones	1 (Upper 4 fans)
Conveyor Speed	5–60 cm/min
Temperature Range	Room temperature to 300 °C
PCB Width Capacity	Up to 330 mm
Welding Height	Top: 30 mm / Bottom: 20 mm
Heat-Up Time	Approximately 20–30 minutes
Power Supply	AC 220V single phase
Starting Power	Approximately 3.6 kW
Working Power	Approximately 1.5 kW
Dimensions (L×W×H)	1660 × 612 × 500 mm (Desktop)
Dimensions (L×W×H)	1660 × 607 × 1075 mm (Vertical)
Weight	200 kg
Conveyor Direction	Left to Right
