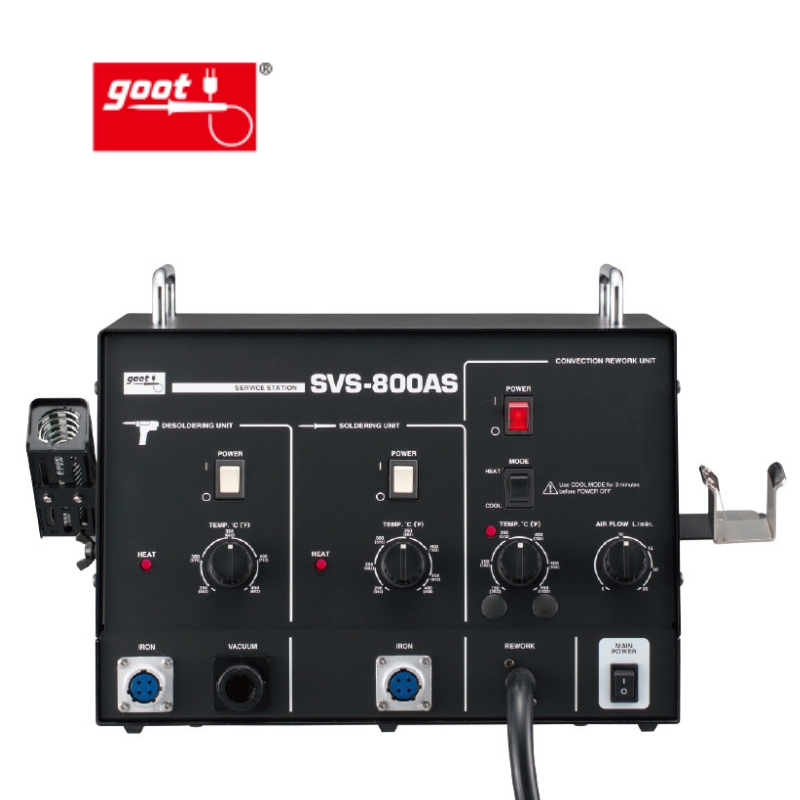

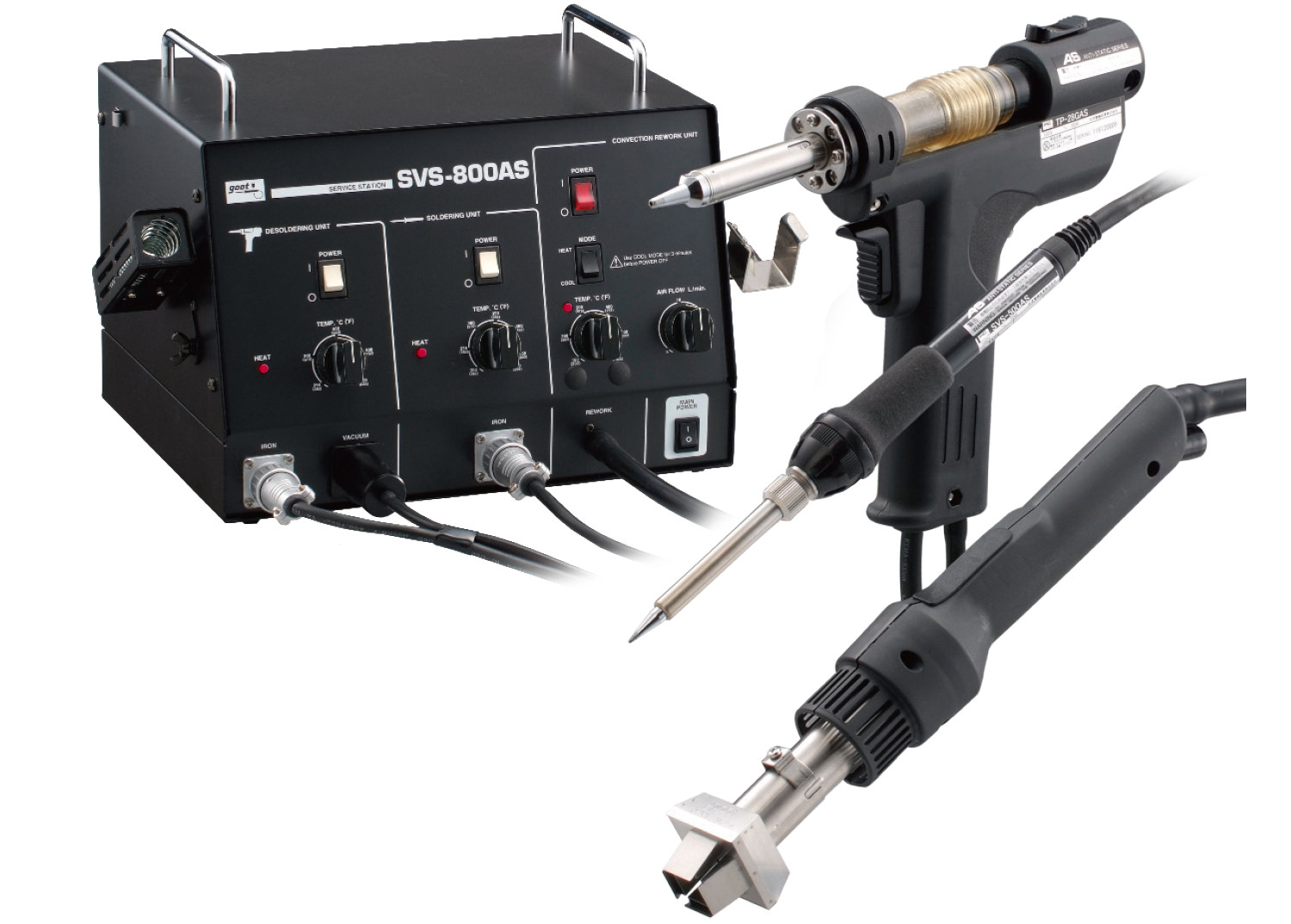

Omnifunctional machine for soldering, desoldering and reworking.
REWORK UNIT
The temperature can be set to max 550°C.
SOLDERING UNIT
Good for a wide range of soldering work with 70W heater.
DESOLDERING UNIT
Instant desoldering with open-valve mechanism.(Please refer to the next page.)
INDIVIDUAL POWER SWITCHES
Along with the main power switch, there are switches for soldering, desoldering, and reworking.
| Manufacturer |
|---|
| MODEL | SVS-800AS | |
|---|---|---|
| Voltage | 220-240V AC 50/60Hz | |
| Power Consumption | 670-760W | |
| Power Cord Length | 1.5m Inlet type | |
| Temp. Setting Range | Desoldering Unit | 250−450°C |
| Soldering Unit | 200−480°C | |
| Rework | 150-550℃ | |
| Insulation Resistance | Over 10MΩ(500V DC) | |
| Vacuum Pump System | Diaphragm system | |
| Vacuum | – 0.08MPa (-600mmHg) | |
| Air Flow | 5-25L /min | |
| Accessories | Cleaning pin TP-100CP-13 / Soldering iron stand ST-76 | |
| Total Weight | 9.3kg | |
| Output Voltage | 220-240V AC |
|---|---|
| Dimensions | 405(W) × 240(H) × 235(D)mm |
| Weight | 8.4kg (w/o cord, hose ) |
| Input Voltage/Power Consumption | 220-240V AC / 85W |
|---|---|
| Heater | Ceramaic Heater |
| Cord Length | 1.2m |
| Dimensions | 220 x 155mm |
| Weight | 250g (w/o cord, hose ) |
| Standard Nozzle | TP-100N-S5 |
| Input Voltage/Power Consumption | 220-240V AC / 70W |
|---|---|
| Ground Resistance | Less than 2Ω |
| Leak Voltage | Less than 2mV |
| Heater | Ceramic heater |
| Cord Length | 1.2m |
| Length | 190mm (with PX-2RT-B, w/o cord bushing) |
| Weight | 70g (with PX-2RT-B, w/o cord) |
| Standard Tip | PX-2RT-B |
| Input Voltage/Power Consumption | 220-240V AC / 370-430W | |
|---|---|---|
| Heater | Nichrome Heater | |
| Hose length between Handpiece and Control Unit |
1m | |
| Length | 220mm (w/o cord) | |
| Weight | 180g (w/o nozzle, cord) | |
