Product description

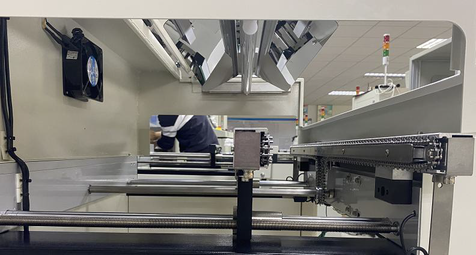

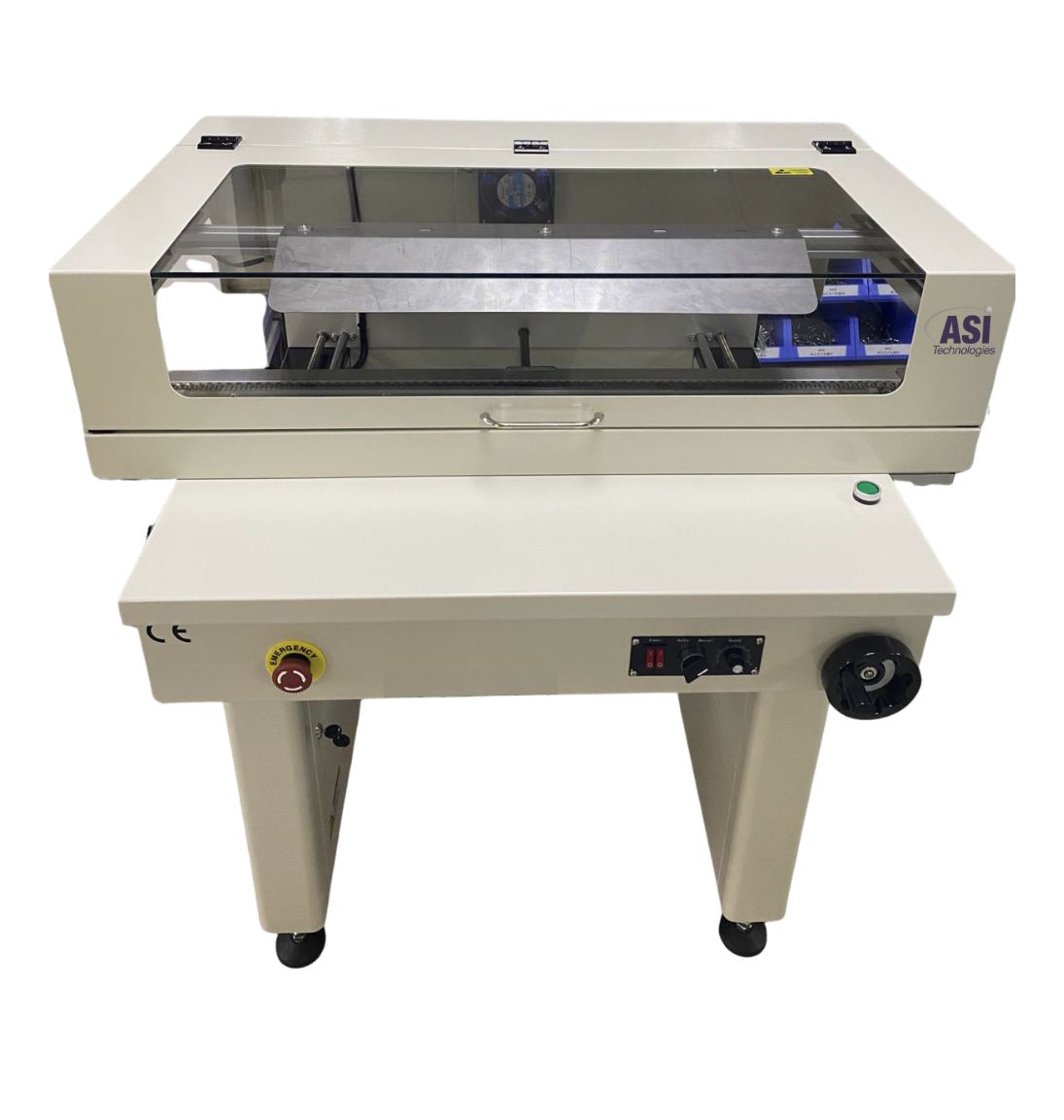

This unit is placed at the conformal coating process line as a inspection station to check the conformal coating quality by visual inspection. This UV inspection conveyor is with the air exhaust interface and air pressure sensor to monitor the air flow.

Standard features

• Mitsubishi PLC program control
• Touch screen operation panel
• By-pass mode, inspection mode selectable
• Conveyor width adjustment by using hand crank.
• Center PCB stop position
• Heavy bottom design to prevent shifting
• Conveyor motor is using with stepper motor
• Covers which protect the boards against dust
• 2-segment independent conveyor speed control
• UV lights to analyze the coating result over the boards
• Motorized width adjustment
• Exhaust sensor which forces to use air extraction
• Double  plate structure
• SMEMA compatible
• Inspection interval can be set by software.

P/N  62694
