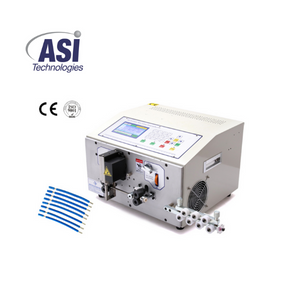

ASI | 310 Touch screen automatic cutting & stripping machine

Product description

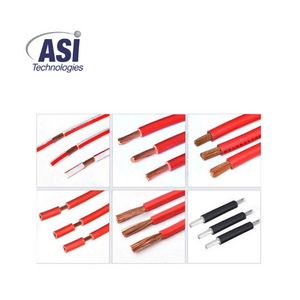

The machine is an automatic cutting and stripping wires with a very wide range (AWG), from 11# to 32# (0.1mm2-4.0mm2). The machine is also suitable for cutting insulation sleeves, from a sleeve diameter of 2 mm to 4 mm.

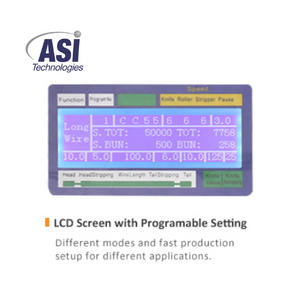

The machine is controlled by a computerized controller that is operated by a touch screen with an LCD display and has maximum convenience for writing the cutting and stripping programs by the operator.

High productivity 50-133 pcs/min .The machine has an internal memory for up to 99 work programs.
ASI310 accuracy is 2% of the length of the wire at work. The wire length can be adjusted from 1-99999 mm and the stripping lengths can be adjusted in the ranges of 0-35 mm on the first side and 0-15 mm on the other side.

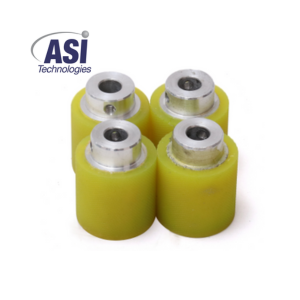

The machines are equipped with silicon/teflon coated wheels.
Option for adding safety cover – part no’ 50756

part no’ 50755

Additional information

Manufacturer	ASI

Specifications

Conductor cross-section	0.1 – 4.5 mm² (32 – 11 AWG)
Cutting length	1-99999 mm
Cutting length tolerance	0.002 * L
Stripping Length	Side II: 0 – 15 mm Side I:0 – 35 mm
Maximum guide tube diameter	6 mm
Productivity	50 – 133 pcs./min
Noise level	< 70 dB(A)
Power	200 W
