תנורי תנאי סביבה מבוקרים עם ואקום, מאפשרים ביצוע בדיקות מכלולים אלקטרונים בתנאי סביבה הכוללים וואקום הן עבור מוצרי תעופה והן עבור מוצרי חלל (חום בלבד).
AUTOMATIC VACUUM OVEN ASI-6213LC – P/N 50315
AUTOMATIC VACUUM OVEN ASI-6933LC – P/N 50316

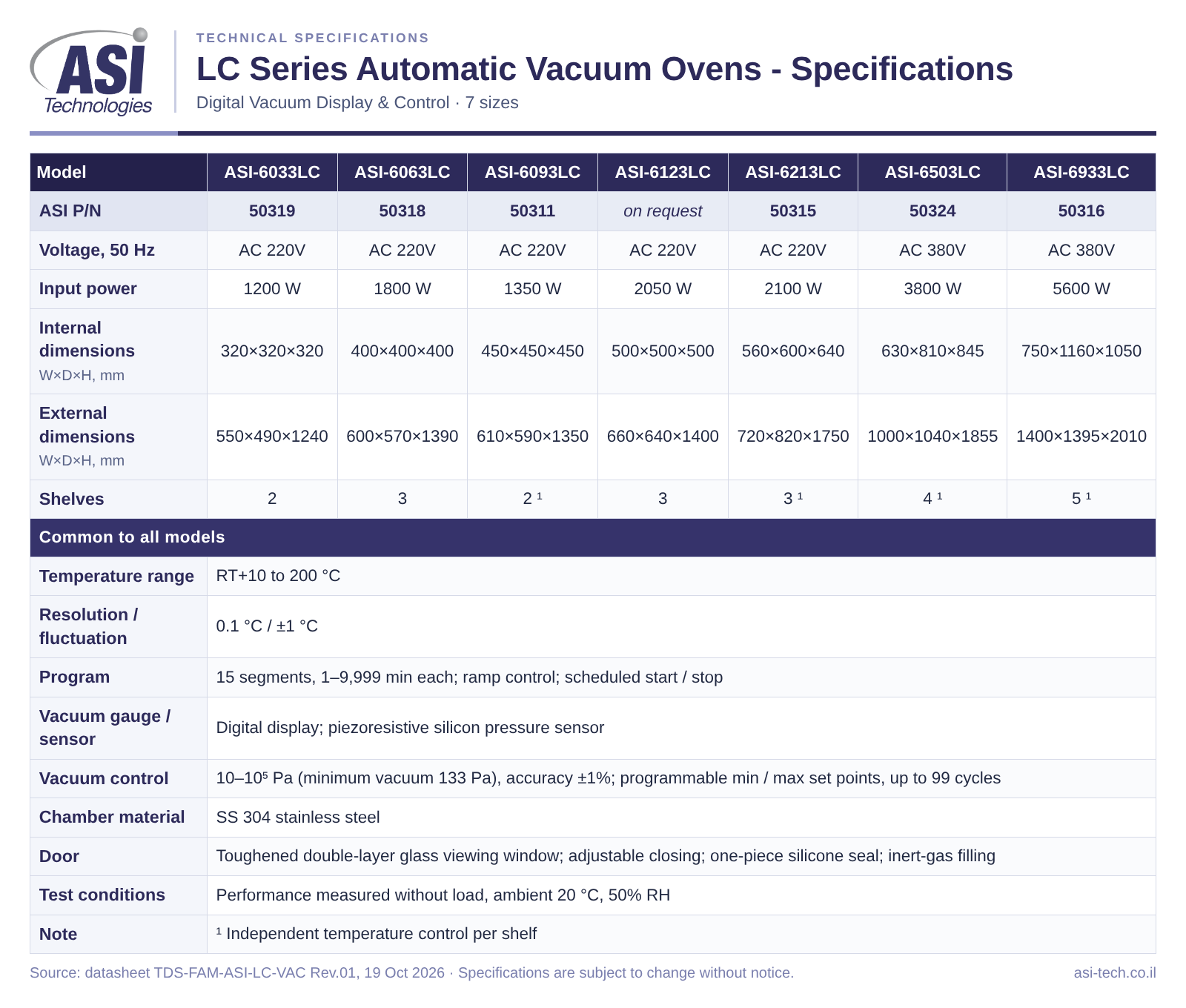

| Manufacturer |
|---|
| Model | ASI-6033LC | ASI-6063LC | ASI-6093LC | ASI-6123LC | ASI-6213LC | ASI-6503LC | ASI-6933LC |
|---|---|---|---|---|---|---|---|
| ASI P/N | 50319 | 50318 | 50311 | on request | 50315 | 50324 | 50316 |
| Voltage, 50 Hz | AC 220V | AC 220V | AC 220V | AC 220V | AC 220V | AC 380V | AC 380V |
| Input power | 1200 W | 1800 W | 1350 W | 2050 W | 2100 W | 3800 W | 5600 W |
| Internal dimensions, W×D×H (mm) | 320×320×320 | 400×400×400 | 450×450×450 | 500×500×500 | 560×600×640 | 630×810×845 | 750×1160×1050 |
| External dimensions, W×D×H (mm) | 550×490×1240 | 600×570×1390 | 610×590×1350 | 660×640×1400 | 720×820×1750 | 1000×1040×1855 | 1400×1395×2010 |
| Shelves | 2 | 3 | 2 ¹ | 3 | 3 ¹ | 4 ¹ | 5 ¹ |
| Common to all models | |||||||
| Temperature range | RT+10 to 200 °C | ||||||
| Resolution / fluctuation | 0.1 °C / ±1 °C | ||||||
| Program | 15 segments, 1–9,999 min each; ramp control; scheduled start / stop | ||||||
| Vacuum gauge / sensor | Digital display; piezoresistive silicon pressure sensor | ||||||
| Vacuum control | 10–10⁵ Pa (minimum vacuum 133 Pa), accuracy ±1%; programmable min / max set points, up to 99 cycles | ||||||
| Chamber material | SS 304 stainless steel | ||||||
| Door | Toughened double-layer glass viewing window; adjustable closing; one-piece silicone seal; inert-gas filling | ||||||
| Test conditions | Performance measured without load, ambient 20 °C, 50% RH | ||||||
| Note | ¹ Independent temperature control per shelf | ||||||
