Thermaltronics | TMT-R8000S Soldering Robot

Product description

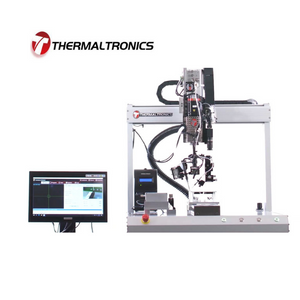

The Thermaltronics Robot System incorporates
innovative design concepts and precision components
to ensure accuracy. The combination of high precision
hardware and intelligent software ensures precision
soldering and low operator training costs.

6-Axis Soldering/Dispensing Platform

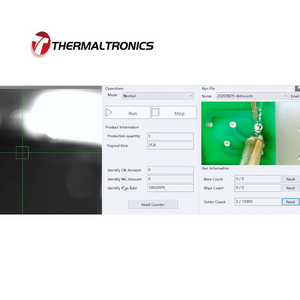

Full vision mapping & Fiducial Marks
Laser Height Measurement

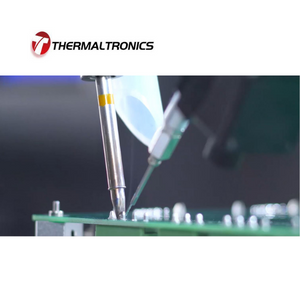

Curie Heat Technology provides precise temp. control
Dynamic Compensation for board variance
Fume extraction Kit
Flux & Solder Paste dispensing (Optional)
Nitrogen Protection (Optional)

Additional information

Manufacturer	Thermaltronics

Specifications

MODEL	TMT-R8000S SPECIFICATIONS
Input Line Voltage	TMT-R8000PS	100-240 VAC
Servo Motor Axis	6 Axis
Camera View	400mm x 300mm
PCBA Size Max	300mm x 300mm
Soldering Region Max	300mm x 300mm
Dynamic Range of Shaft	X Axis	400mm Standard
	Y Axis	300mm Standard
	Z1, Z2 Axis	100mm, 20mm
	R Axis	330°
Shaft Speed	X, Y Axis	0.1 ~ 300 mm/sec
	R Axis	0.1 ~ 360°/sec
	Q Axis	0.1 ~ 360°/sec
Position Repeatability	X, Y & Z Axis	±0.02 mm
Position Repeatability	R Axis	±0.03°
Rotation Platform	Repeatability	sec ±5 (0.001°)
	Accuracy	sec ±10 (0.002°)
	Parallelism	mm ±0.005
	Concentricity	mm ±0.01
Camera	Resolution	1600 x 1200
Air Pressure	Max. 6 Bar/ 87 psi
Solder wire diameter range	0.3 ~ 1.6 (mm)
Controller	Industrial Computer w/Custom Software
Ports and connectors	RJ45, USB, COM
Operating System	Windows 10 Professional
Soldering System	120 watts (40 watts RF output)
Curie Heat Technology	250C ~ 500C (Tip cartridge pre-defined)
Power Supply	100 ~ 240V AC
Power Consumption	1 KVA
Dimensions	840mm (H) x 690mm (D) x 660mm (W)
Weight	100 KG
