Product description

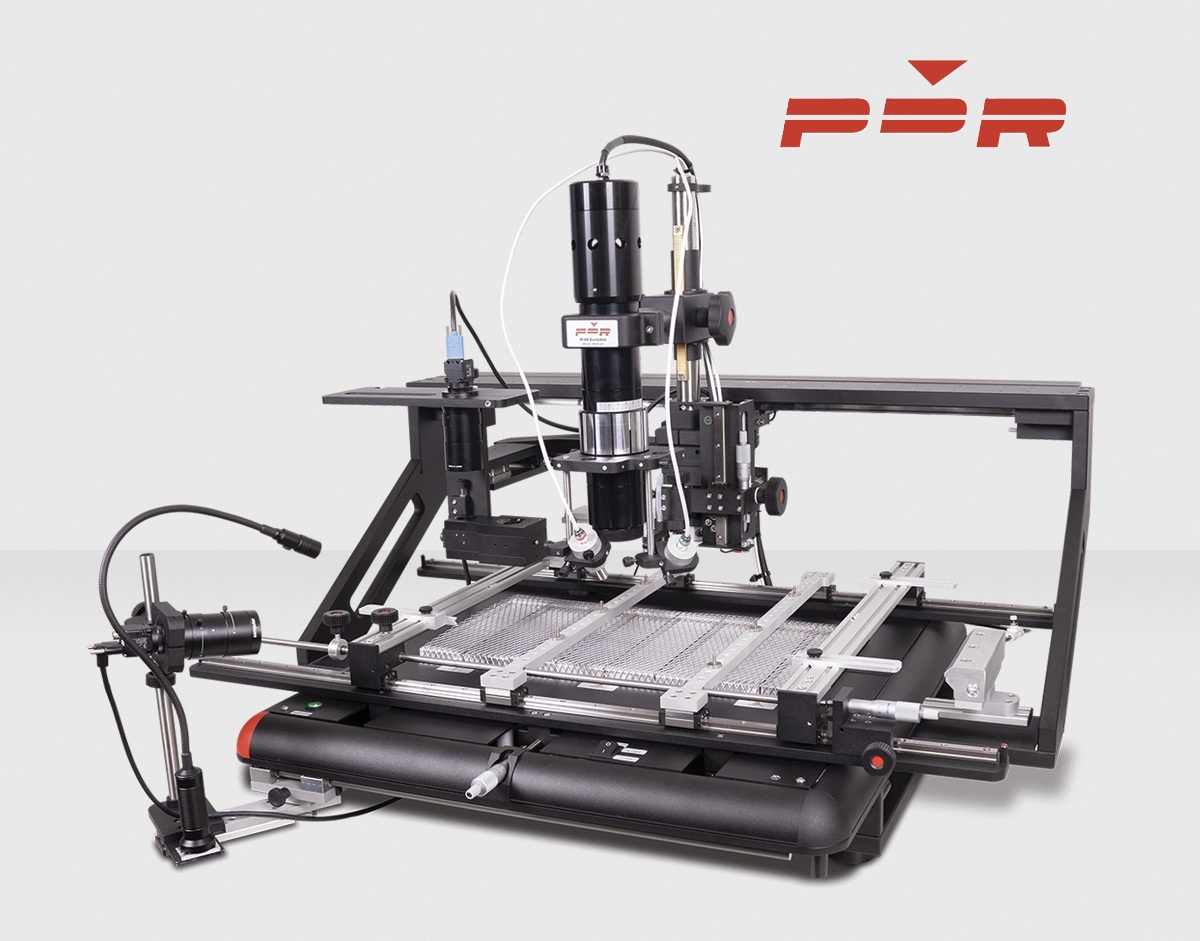

Advanced Infrared Rework Platform – For Extra-Large PCBs and High-End Applications
The PDR IR-E6 is the ultimate platform for extra-large PCBs used in aerospace, automotive, and defense industries. It combines a gantry-mounted IR head with powerful preheating for the most demanding thermal requirements.
Key Features:
- XL PCB Capacity: Designed for boards up to 460 × 620 mm (18″ × 24″).

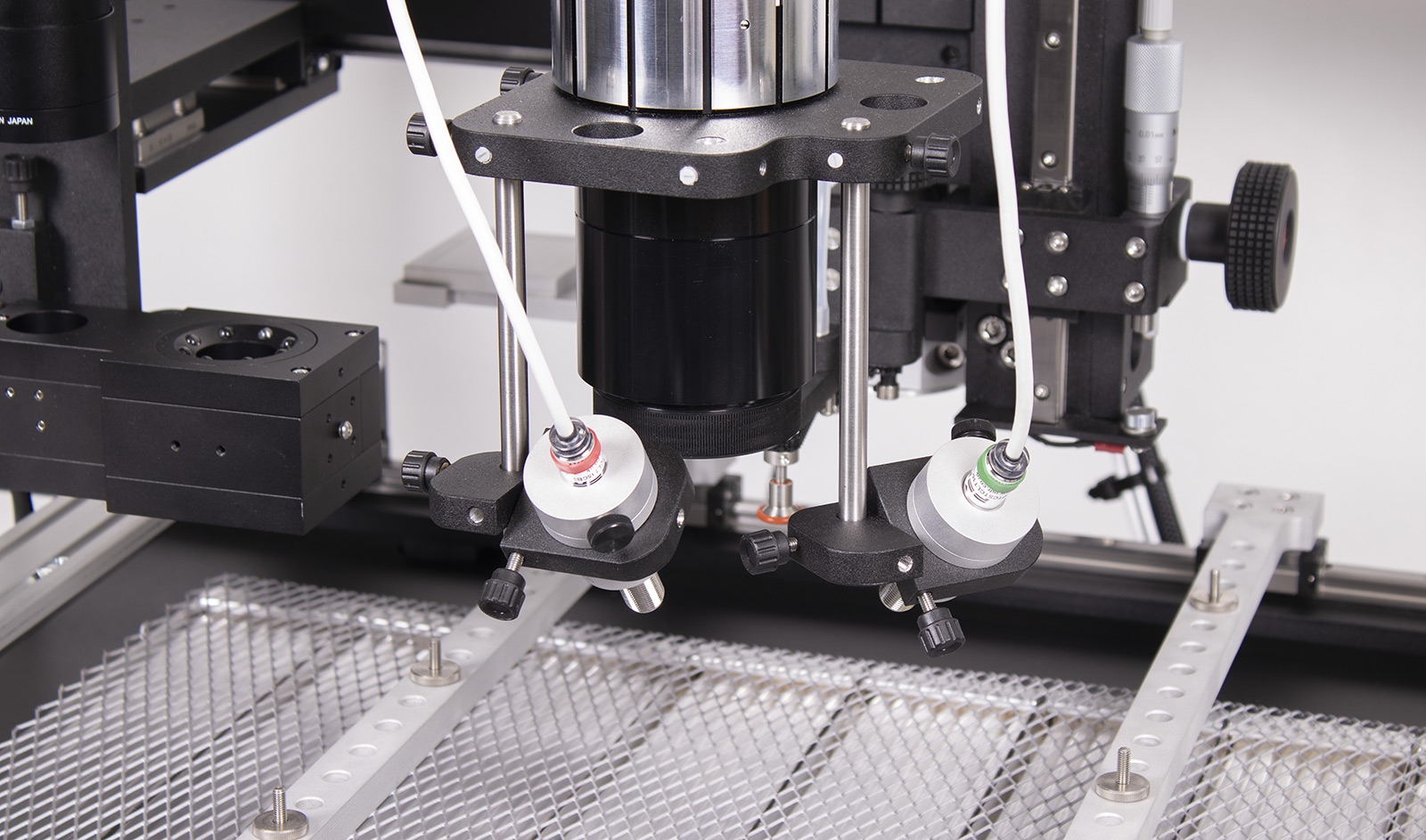

- Gantry-Mounted Top Heater: 150W Focused IR head for easy positioning across large surfaces.
- High-Power Preheating: 4000W 3-zone Dark IR preheater for high-mass components.
- Dual-Camera Alignment: Split Beam Prism system with Gig-E cameras for flawless alignment.
- Advanced Thermal Control: Supports layered profiles and real-time reflow observation.
