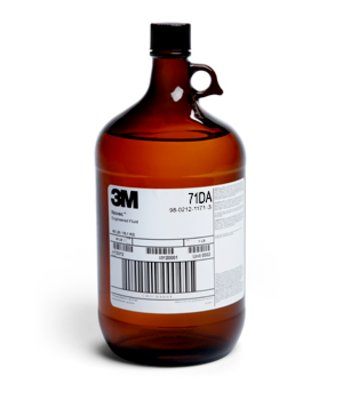

3M™ | Novec™ 71DA Flux Removal and Vapor Degreasing

Product description

3M™ Novec™ 71DA is an engineered fluid and is ideal for flux removal and vapor degreasing operations. It is also very effective for deposition of silicones and other lubricants. This is a true azeotrope – maintaining a constant composition over time in a vapor degreaser. It is non-flammable and low in toxicity which makes it an ideal replacement for Trichloroethylene (TCE) and n-propyl bromide (nPB).

Specifications

Non-flammable
Non-conductive
Low toxicity
Low Global Warming Potential (GWP)
Zero ozone depletion potential
Low surface tension penetrates tight spaces for improved cleaning
Excellent for removal of ionic contamination

Additional information

Manufacturer	The 3M Company

Specifications

Application Category	Solvent Cleaning and Vapor Degreasing
Applications	Deposition Solvent
Boiling Point	40 °C
Boiling Point Range	0 °C – 50 °C
Brand	Novec
Cleaning Strength	Medium Duty
Compatibility	Ceramics, Metals, Silicones, Solvent-resistant plastics
Density	1.33 g/cm³
Dielectric Strength Range	<20 kV
Fluorocarbon Solubility	Medium
Fluorochemical Lubricants And Dispersions	Fluorosilicone, Silicone
GWP (IPCC 2007)	157 (100 yr ITH)
GWP Range	Low
Hydrocarbon Solubility	High
Max Use Temp Range	<150 Degree C
National Stock Number	6850014590108, 6850014590112, 6850014590123
Plastic Elastomer Compatibility	Requires Customer Testing
Product Series	Novec 71DA
Purity Grade	Standard
Replacement For	4310-SMT, AK-225 AES, CFC-113, HCFC-141b
US Govt Contract Number	GS-07F-0394J
